ZOTAC Gaming GeForce GTX 1660 Super 6GB GDDR6 192-bit Gaming Graphics Card, Super Compact, ZT-T16620F-10L
AED1
- Brand: ZOTAC
- Product Code: SU4869
- Availability:
ZOTAC Gaming GeForce GTX 1660 Super 6GB GDDR6 192-bit Gaming Graphics Card, Super Compact, ZT-T16620F-10L
About this item
- New turing architecture
- 6gb 192-bit gddr6
- Super compACt 6.83-inch card, fits 99% of systems
- Dual slot, 4k/ hdr/ VR ready
- 3 x DisplayPort 1.4, 1 x HDMI 2.0b
- Boost clock 1785 mhz
From the manufacturer
NVIDIA TURING ARCHITECTURE
The GeForce GTX 1660 SUPER is powered by the NVIDIA Turing architecture, bringing supercharged performance to the latest games. Get Game Ready with GTX.
GEFORCE EXPERIENCE
The essential companion to your GeForce graphics card. Capture and share videos, screenshots, and livestreams. Keep your drivers up to date and optimize your games.
GAME READY DRIVERS
Get high levels of performance, and smooth experience possible, from the moment you start playing.

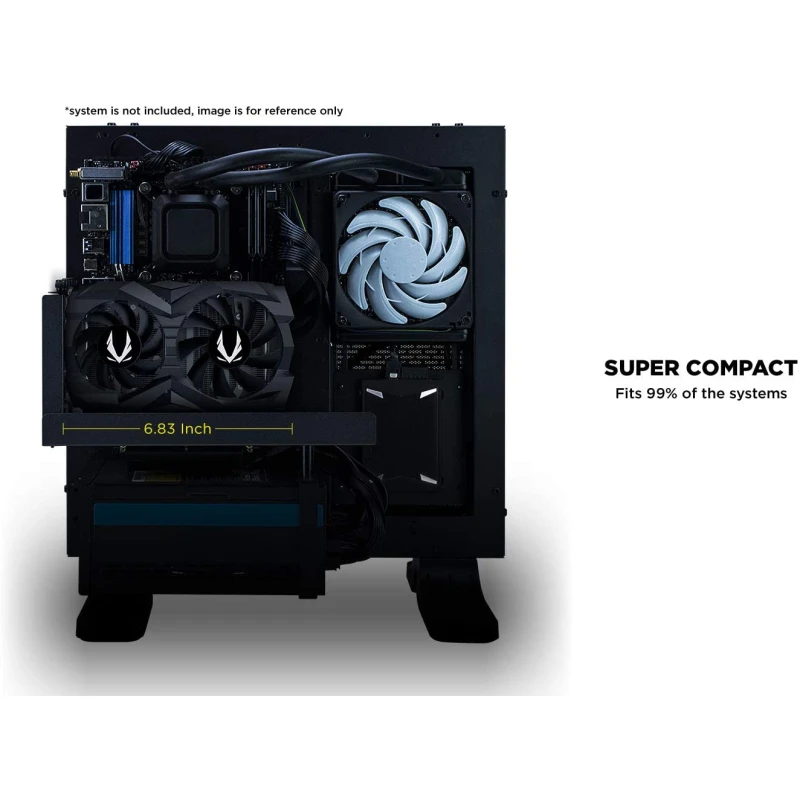

SUPER COMPACT
Small powerhouse design. No need to ask “Will it fit?”

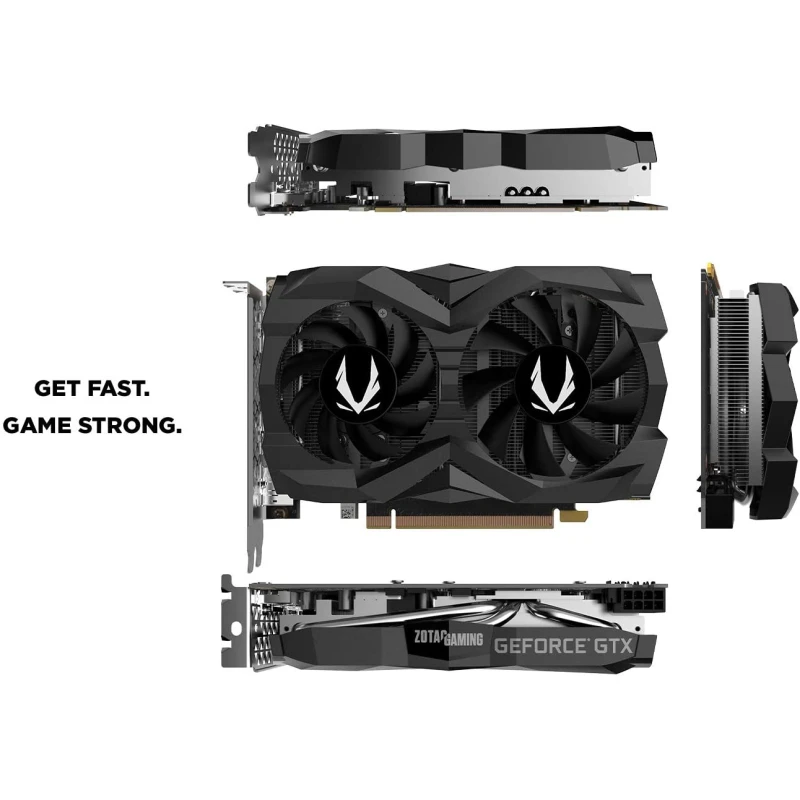

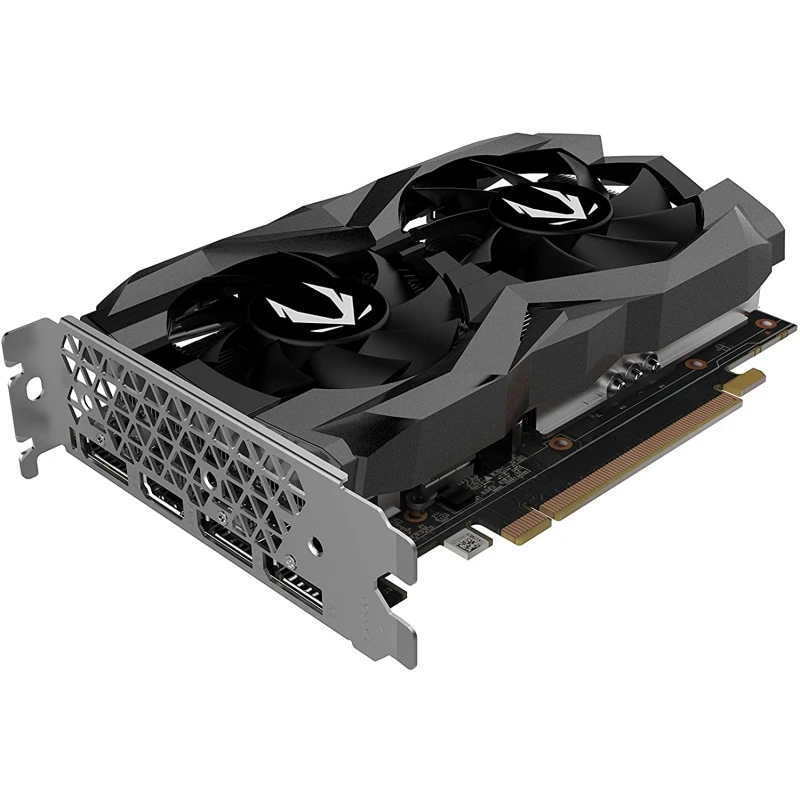

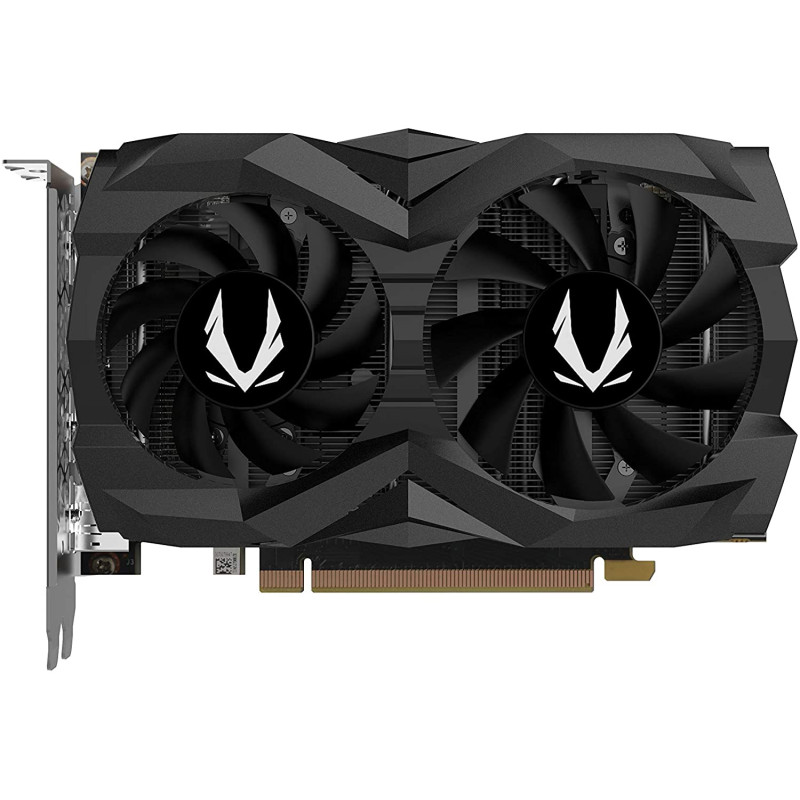

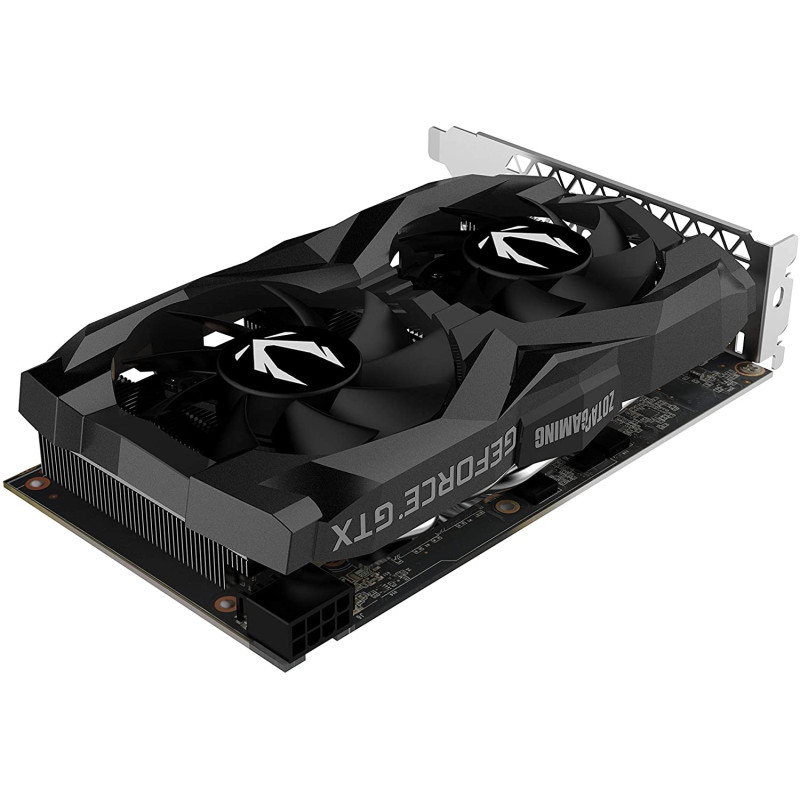

GTX 1660 SUPER TWIN FAN
Super Compact, dual offset fan design
VR READY
Discover next-generation VR performance, low latency, and plug-and-play compatibility with leading headsets.
FIRESTORM
Fine tune your ZOTAC GAMING Graphics Card with enhanced intelligence, adjust the SPECTRA lighting, or simply monitor the hardware status.

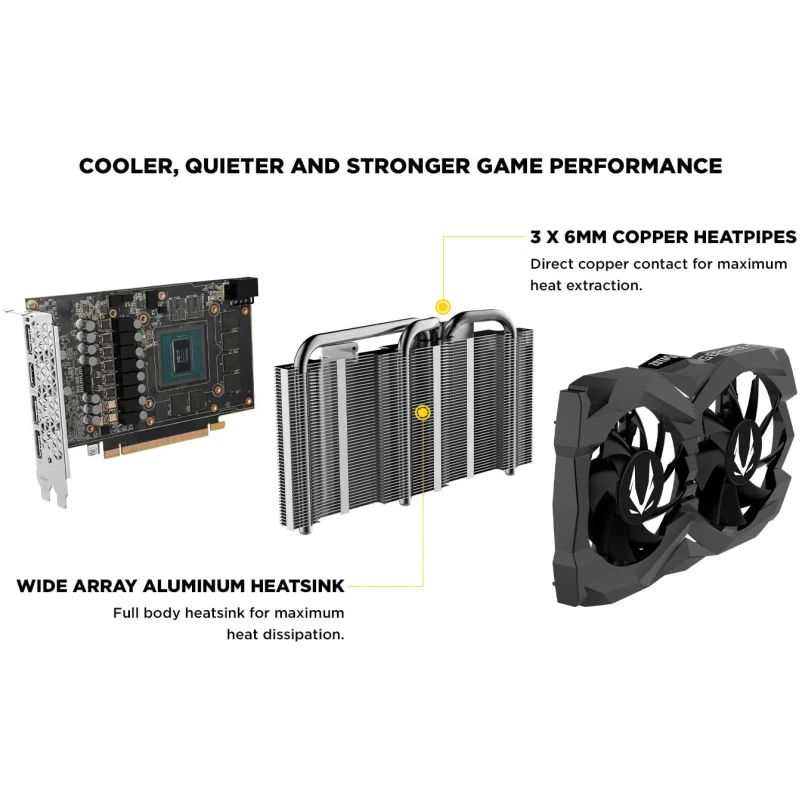

COOLING
3X6MM COPPER HEATPIPES
Direct copper contact for maximum heat extraction.
WIDE ARRAY ALUMINUM HEATSINK
Full body heatsink for maximum heat dissipation.

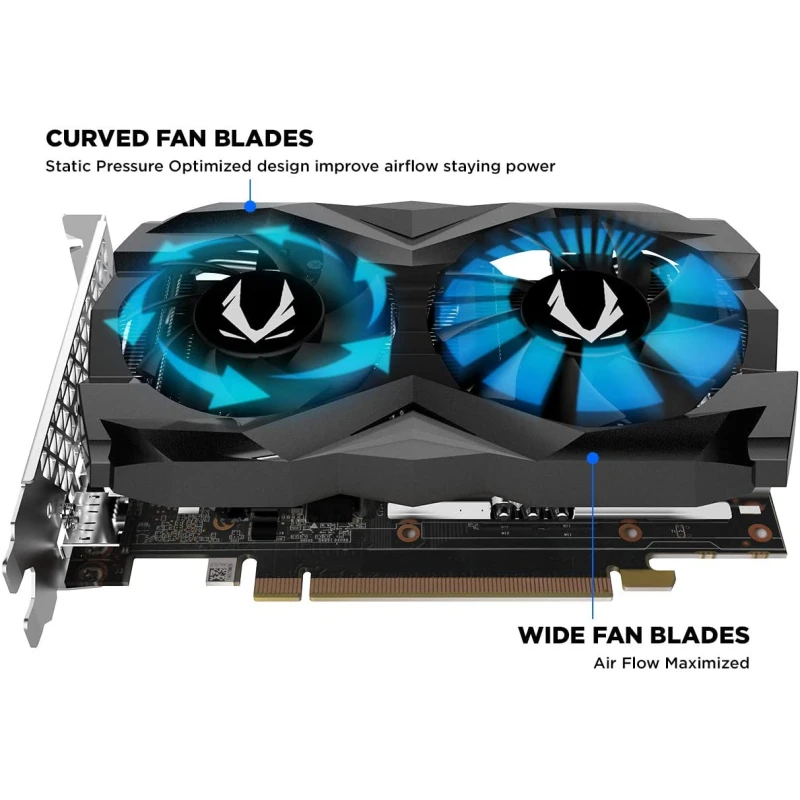

CURVED FAN BLADES
Static Pressure Optimized design improve airflow staying power
WIDE FAN BLADES
Airflow maximized design
Product description
The all-new generation of ZOTAC gaming GeForce GTX graphics cards are here. Based on the new NVIDIA Turing architecture, it's packed with GDDR5 Fast memory. Get ready to get fast and game strong.
features
super compact
4K, HDR, and VR ready
NVIDIA ansel
NVIDIA G-SYNC compatible

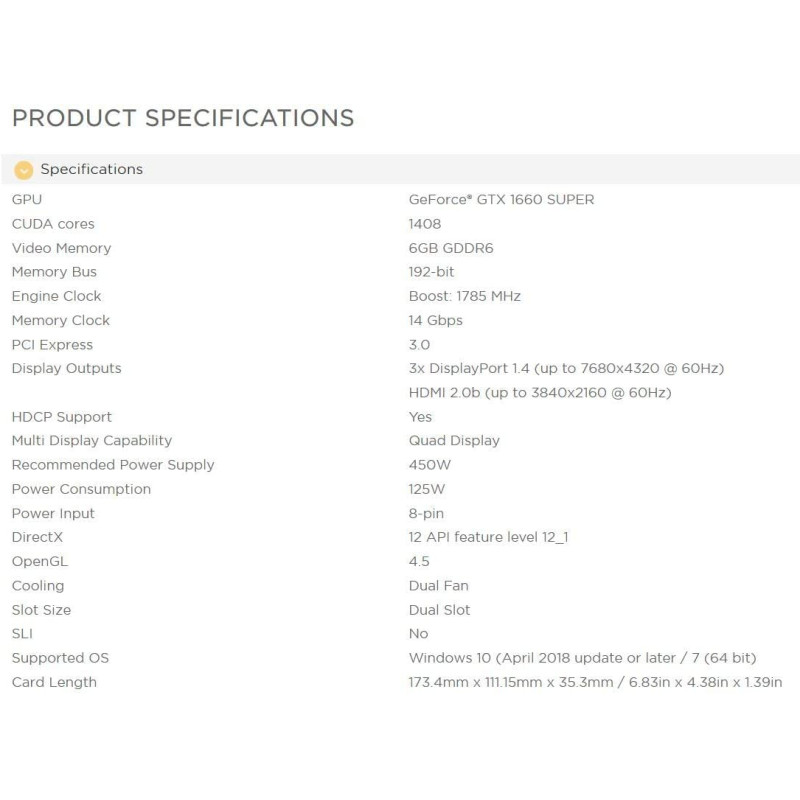

specifications
NVIDIA GeForce GTX 1660 Super gpu
1408 CUDA cores
6GB GDDR6 memory
192-bit memory bus
engine boost clock: 1785 mhz
memory clock: 14.0 gbps
PCI Express 3.0
connections

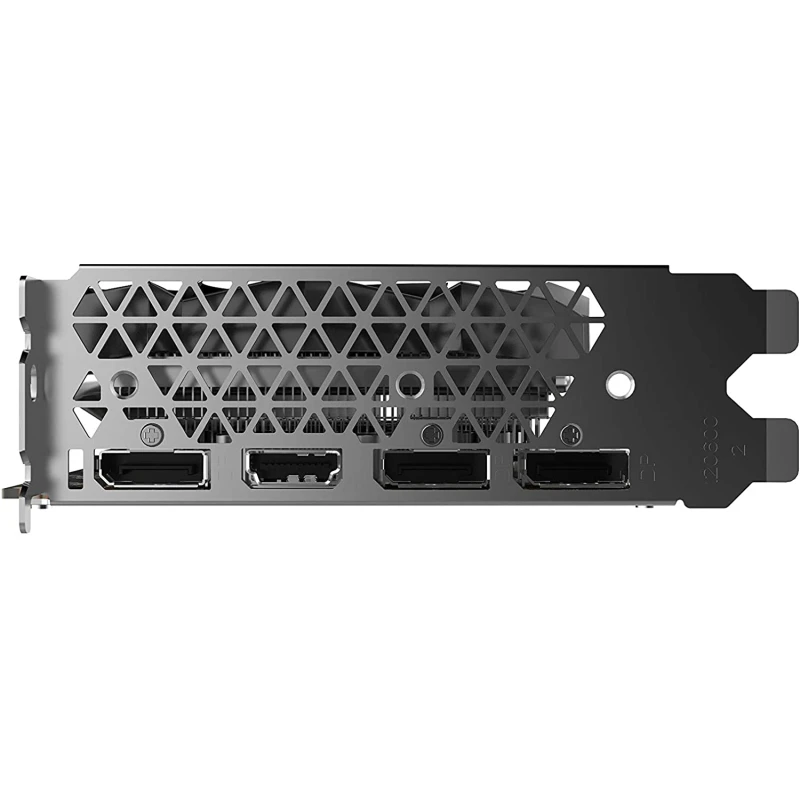

3 x DisplayPort 1.4 (up to 7680x4320@60hz)
1x HDMI 2.0B (up to 3840x2160@60hz)
Quad simultaneous display capable
power requirements
450-watt power supply recommended
125-watt Max power consumption
software compatibility ready drivers
microsoft direct 12 API, Vulkan api
opengl 4.Microsoft Windows 10 (April 2018 Update or later) /7 x64

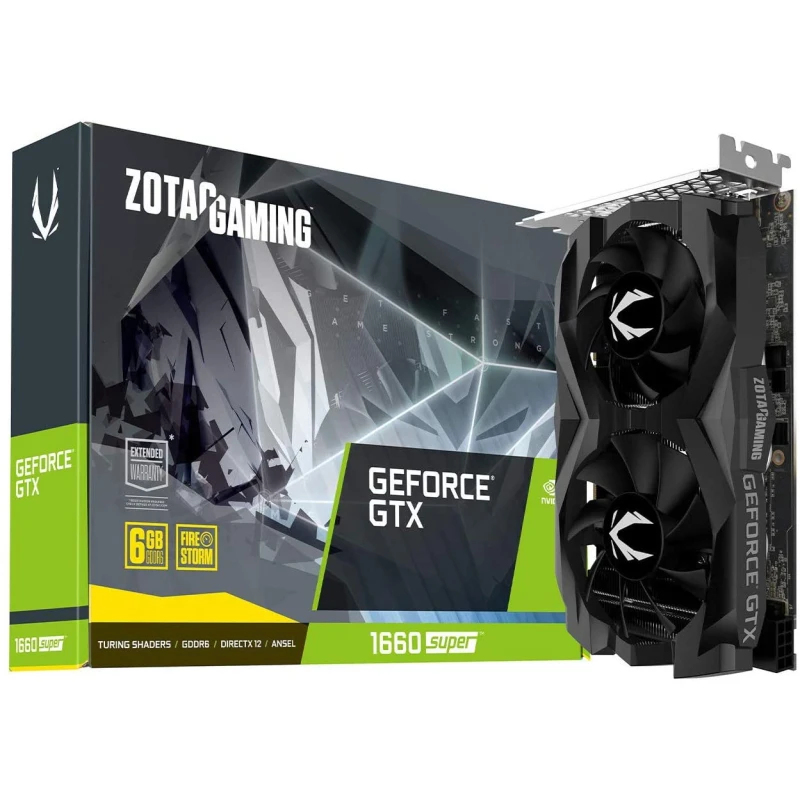

inside the box
zotac gaming GeForce GTX 1660 Super twin fan

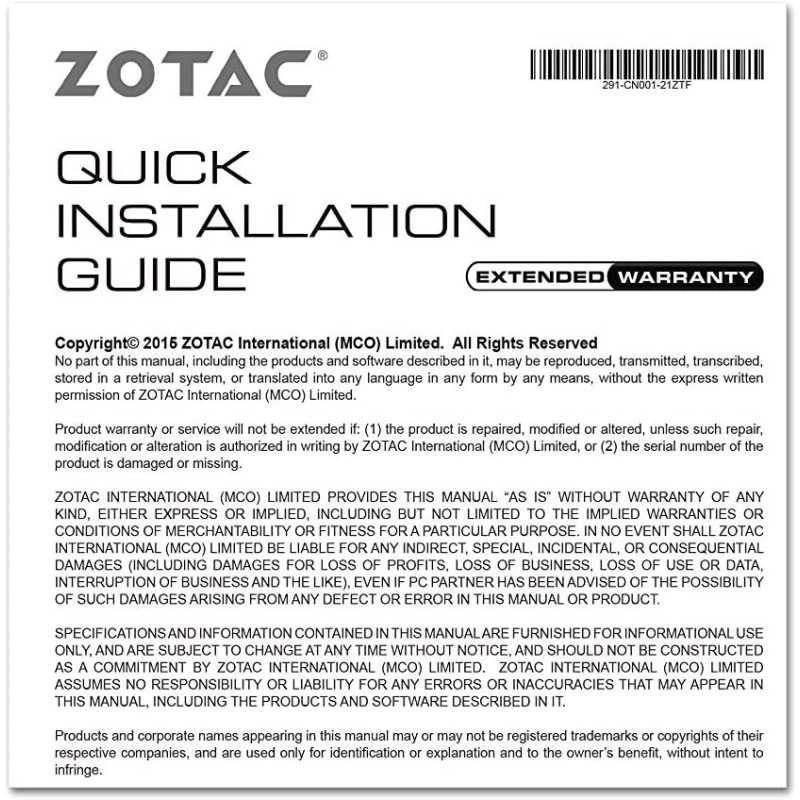

user manual

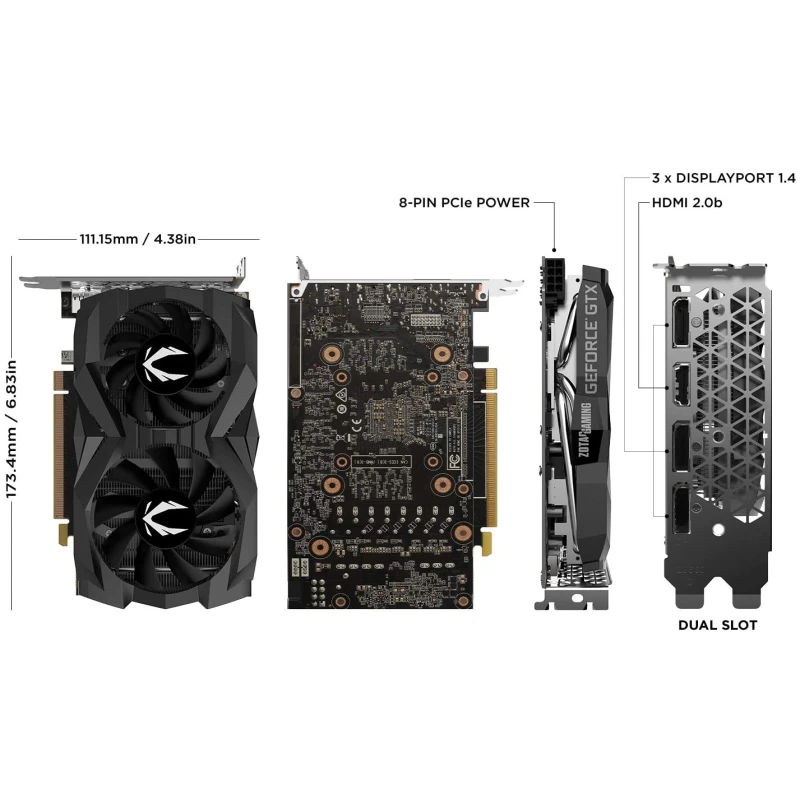

dimensions
length: 209.6mm (8.3In)
height: 119.3mm (4.7In)
width: 2 slots (41mm) (1.61In)
box
height: 283mm (11.14In)
width: 218mm (8.58In)
depth: 83mm (3.27in).
